Outdoor IP66 Digital Signage
1500–5000 nits, IP66, -20~50°C. For full outdoor deployment beyond window applications.
View specs →High-Brightness Window Display
Sunlight-readable storefront signage. 700 to 5000 nits. Single or double-sided. Hanging or floor-standing. 80mm ultra-slim. Auto-dimming optional. Industrial-grade wide-temperature LCD panels with Wacker optical bonding as standard.
12 hrs Quotation SLA
3-year Warranty
50 units MOQ · OEM
Display
32"–86"
Resolution
FHD (1920×1080) · 4K UHD (3840×2160)
Brightness
1300:1
Lead time
15–25 business days (PO)
Full specifications
Detailed parameters for channel deployment. Verified spec sheets available on request.
Display
Size range32"–86"
Brightness700 / 1500 / 2500 / 4000 / 5000 nits
ResolutionFHD (1920×1080) · 4K UHD (3840×2160)
BacklightDLED · direct-lit high-bright
Contrast1300:1
Color depth16.7M (8-bit) · 1.07G (10-bit)
Viewing angle178° H / 178° V
Optical bondingWacker optical bonding · +30% clarity
System & Connectivity
Auto-dimmingAmbient light sensor · automatic brightness adjustment
Anti-UV coating99.99% UV rejection · LCD protection
Operating systemAndroid (optional) · Windows (optional)
InputHDMI × 2 · USB × 2 · LAN · Audio
NetworkWi-Fi · Bluetooth · Ethernet (RJ45)
CMSWeb-based · Cloud · Private-label ready

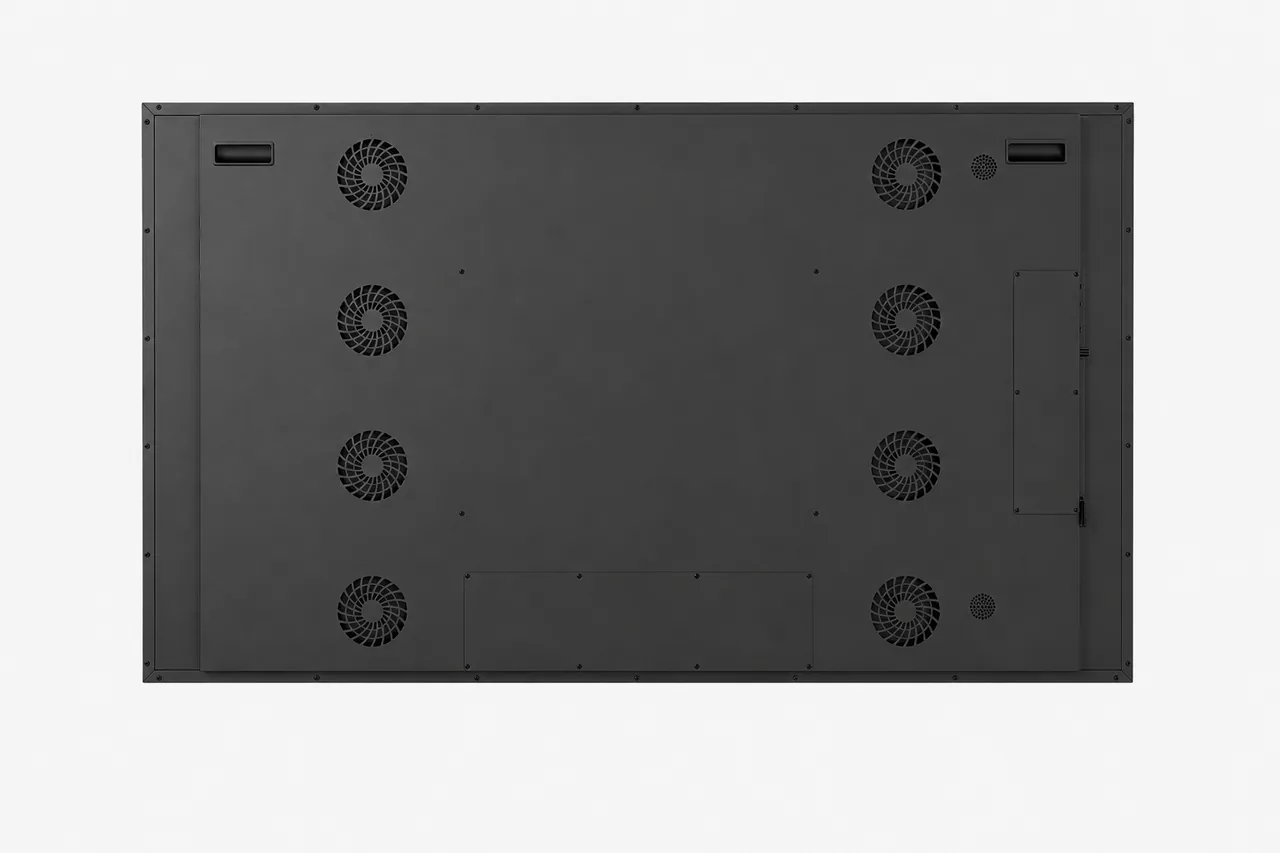

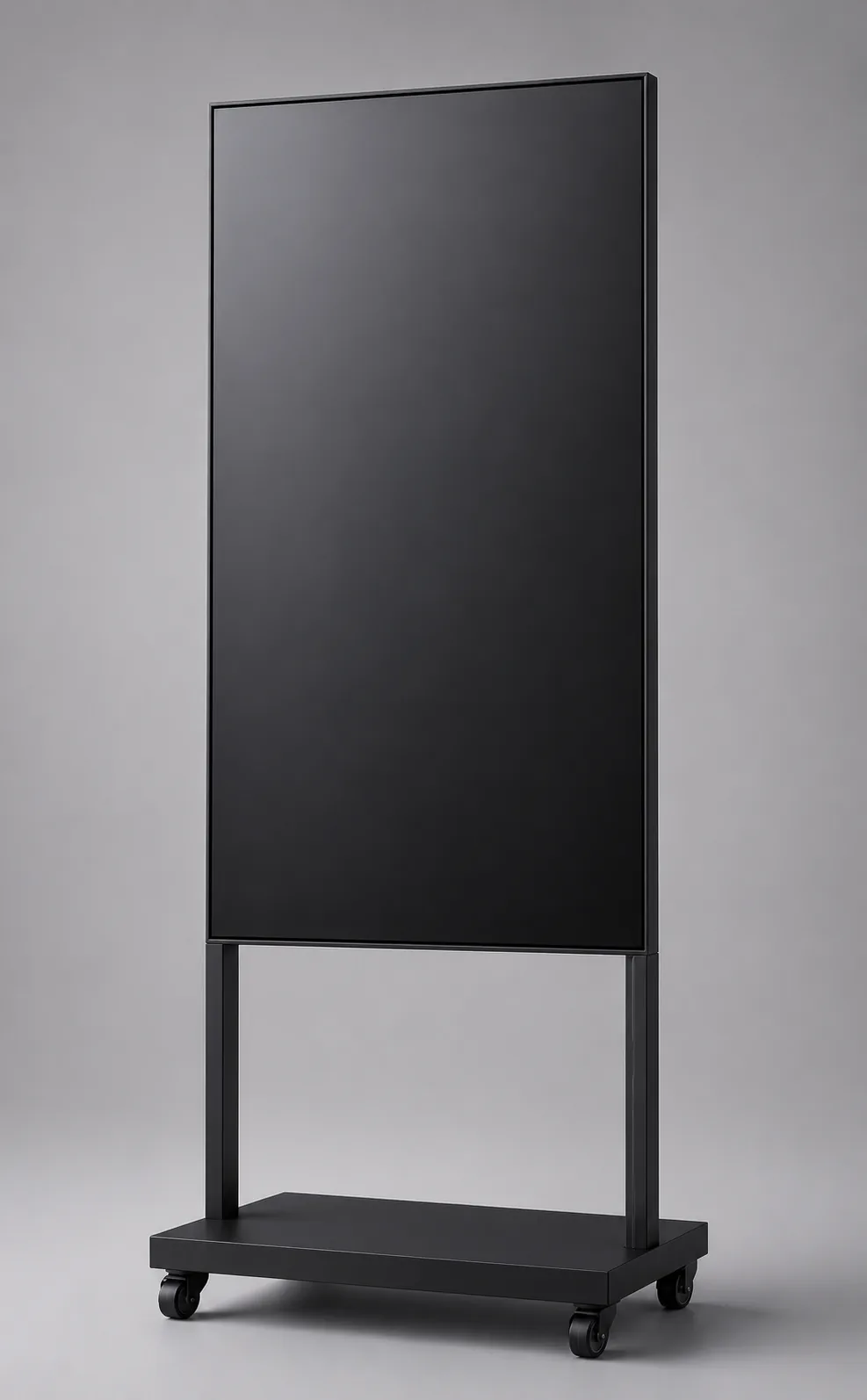

MountingHanging · Floor-standing · Wall-mount
Slim profile80mm ultra-slim · double-sided available
Engineered for commercial duty
Capabilities that separate consumer TVs from commercial signage. Each addresses a real channel deployment need.
Wacker optical bonding
German-engineered Wacker silicone gel bonding eliminates the air gap between LCD and front glass. Result: +30% clarity, no internal fogging, +50% contrast in direct sunlight.
Auto-dimming light sensor
Ambient light sensor continuously adjusts panel brightness. 5000 nits at noon, 700 nits at dusk, near-zero at night. Saves energy and extends panel life.
99.99% anti-UV protection
Front glass blocks 99.99% of UV-A and UV-B. LCD panel and polarizers are protected from yellowing for 10+ year installations.
Industrial wide-temp panel
Designed for -20°C to 60°C operating range. Suitable for outdoor-facing windows with direct sun exposure and HVAC-controlled indoor spaces.
Single or double-sided
Double-sided configuration available for corridor and window placement. Show different content on each side or mirror the same campaign.
80mm ultra-slim
Thinnest profile in the high-brightness category. 80mm depth fits standard window mullions without custom framing.
Application scenarios
High-volume channel deployments. Standard SKUs with optional branding, packaging and firmware customization.
Retail storefront windows
Direct sunlight-readable signage facing the street. Drives foot traffic, communicates promotions, and operates 24/7 without manual intervention.
QSR drive-thru menu boards
Outdoor-facing menu boards readable in direct sun. Auto-dimming handles day/night transition. Anti-vandal front glass for high-traffic lanes.
Shopping mall atrium

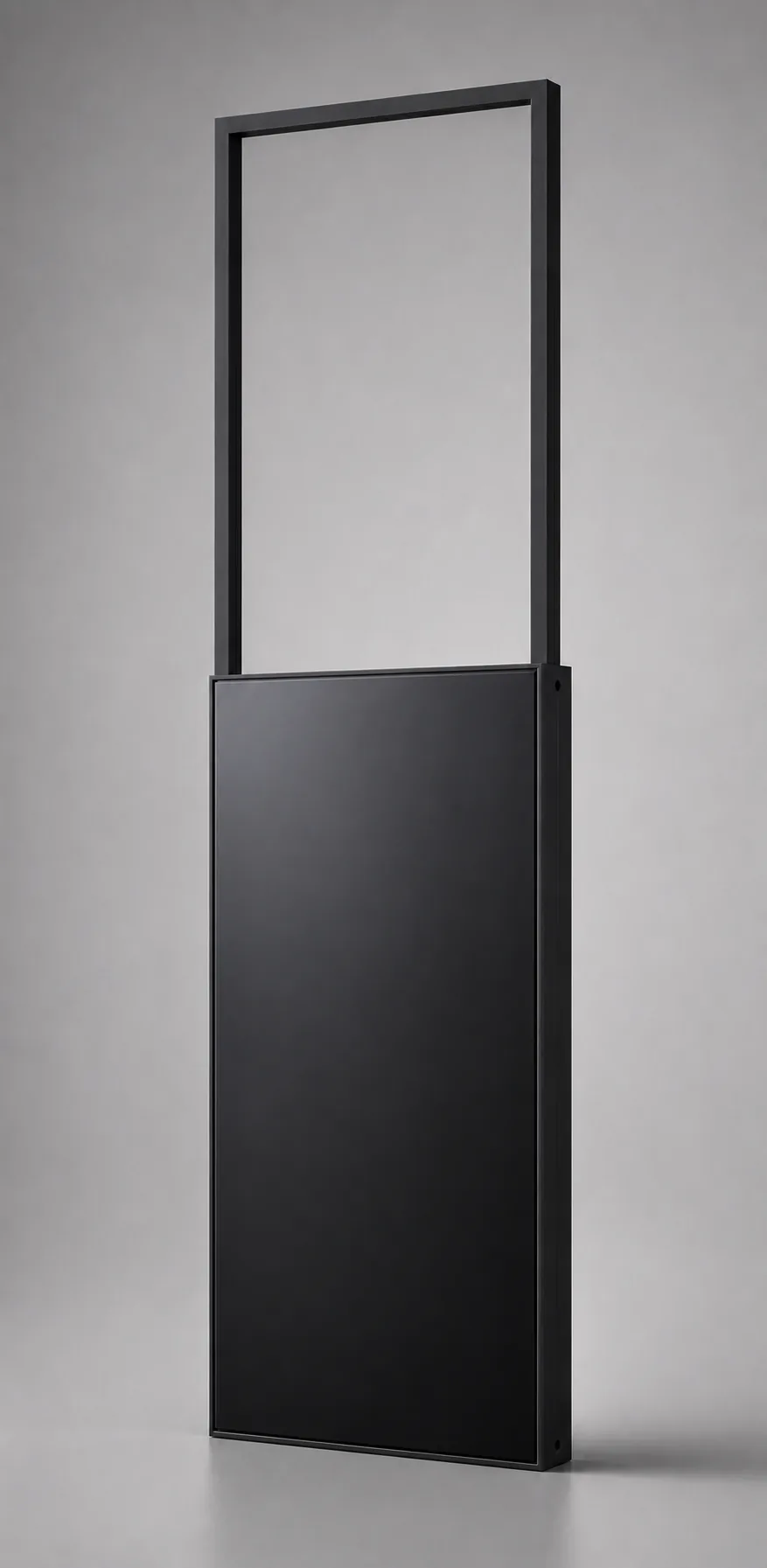

Hanging double-sided displays in mall atriums. 360° visibility for promotions and tenant advertising.
Transportation hubs & DOOH
Train stations, bus terminals and airport concourses. Wide-temp operation, vandal-resistant, 24/7 duty rated for ad-network deployment.
OEM customization built in
TZ Display High-Brightness Window Display is engineered as a private-label platform. From project kickoff to first article in 30–45 business days. Configure any combination below — your SKU, your brand, your market.
Logo & boot screenReplace splash, system UI, packaging
Housing colorBlack, white, custom RAL
Hardware configRAM, storage, I/O port layout
Private-label CMSApp name, login, branding
PackagingMulti-language manuals, gift box
CertificationsCE · FCC · RoHS · ISO 9001
Related products
TZ Display product families that pair for end-to-end channel programs.
Wall-Mount Digital Signage
32–85" indoor wall displays. Same brand across window + interior wall for full campaign.
View specs →
LCD Bar Display
23–58.5" stretched LCDs for shelf-edge. Pair window + shelf for full retail visibility stack.
View specs →Frequently asked questions
Quick reference on size, MOQ, lead time, customization and warranty. For project-specific questions, contact our sales team.
What is Wacker optical bonding?
Wacker optical bonding is a German-engineered process where a silicone gel is applied between the LCD panel and the front protective glass. It eliminates the air gap (which causes internal reflection and contrast loss) and improves clarity by ~30%, especially in direct sunlight. It also prevents internal fogging in temperature-fluctuating environments.
Is 5000 nits too bright for indoor use?
TZ Display window displays include an ambient light sensor that automatically dims the panel based on surrounding light. At night or in low-light conditions, brightness drops to 200–500 nits equivalent. You get the visibility you need during the day without blinding customers or staff indoors.
How long does the panel last in direct sunlight?
10+ years typical operational life. The anti-UV coating protects the LCD from yellowing, the auto-dimming reduces cumulative backlight hours, and the wide-temp panel design handles thermal stress from direct solar load.
What is the typical lead time?
Standard SKUs ship within 15–25 business days after PO confirmation. Custom OEM projects typically run 30–45 business days from artwork approval to first article. Detailed lead time provided in the quotation.
What warranty and support is included?
3-year standard warranty on all commercial display products. Spare parts, RMA workflow, remote diagnostic support and on-site engineering for qualified project orders. Multi-language support in English, Chinese, Spanish, Portuguese, Arabic and Russian.
Tell us your project. We'll recommend the right display configuration.
Send product type, quantity, target country and branding needs. Our sales team replies within 12 business hours with model suggestions, OEM options, lead time and a factory quotation.
