Outdoor IP66 Digital Signage
- Size32" / 43" / 50" / 55" / 65" / 75" / 86"
- Brightness1500–5000 nits optional
- LCD Panelindustrial-grade wide-temperature LCD panel
- Tempered Glassultra-clear glass / AG glass / AR glass / laminated glass
- BondingGerman Wacker water glue full lamination
- Waterproof GradeIP66 with intelligent temperature control system

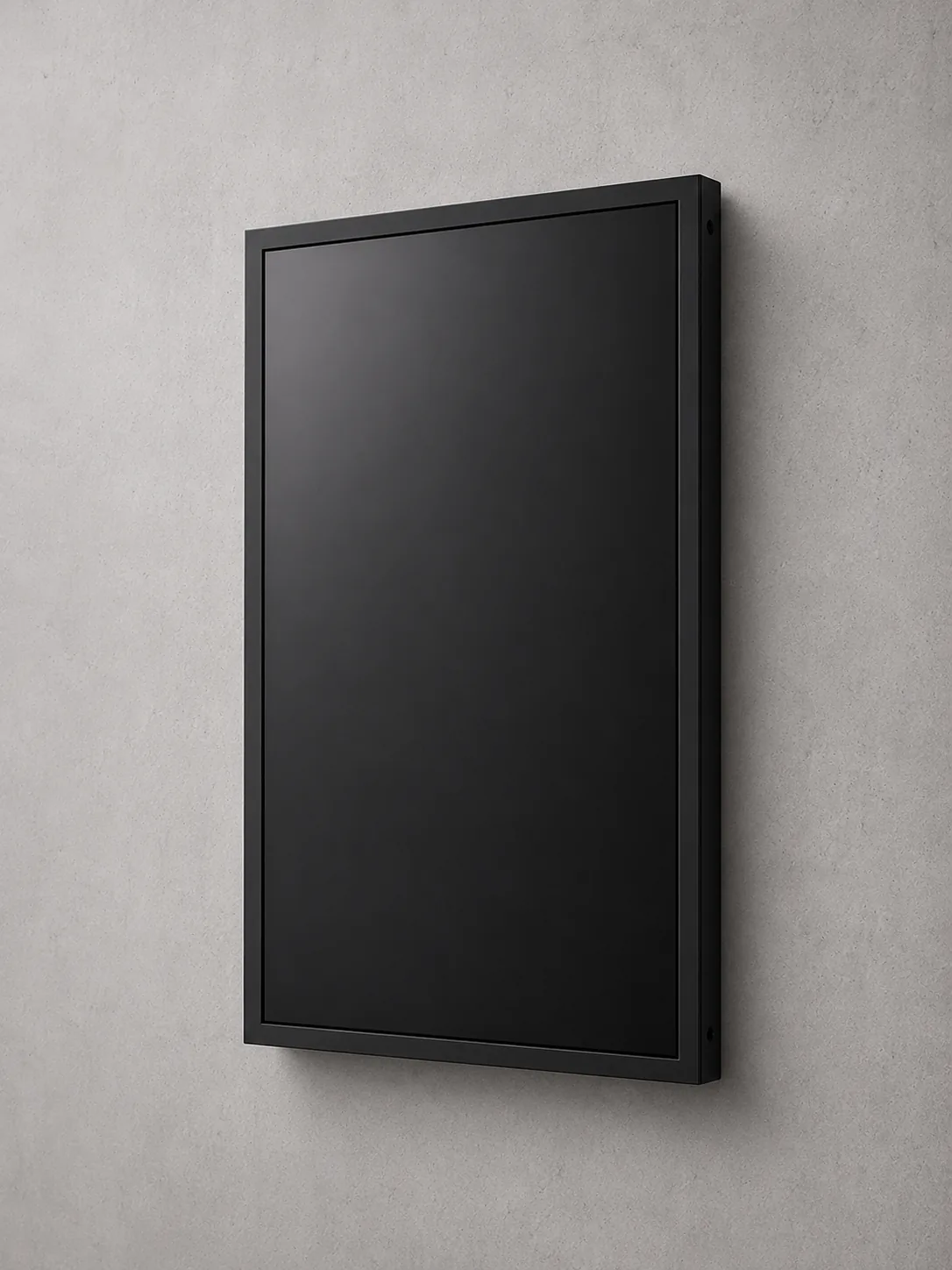

- Installationwall mount, single / double / triple screen bracket optional
- Machine TypeModular ultra-thin all-in-one machine
- CustomizationTouchscreen / Mainboard can be customized
12 hrs Quotation SLA
3-year Warranty
50 units MOQ · OEM
Full specifications
Detailed parameters for channel deployment. Verified spec sheets available on request.
Display
SeriesFSOD320–860 · 32"–86"
Brightness1500 / 2500 / 4000 / 5000 nits
ResolutionFHD (1920×1080) · 4K UHD (3840×2160)
BacklightDLED · direct-lit high-bright
Contrast1200:1
Color depth16.7M (8-bit) · 1.07G (10-bit)
Viewing angle178° H / 178° V
Optical bondingWacker bonding · anti-UV 99.99%
System & Connectivity
IP ratingIP66 waterproof & dustproof
Operating temp-20°C to 50°C · smart thermal control
Anti-vandalTempered glass · IK08 impact rating optional
Operating systemWindows (optional) · Android (optional)
InputHDMI × 2 · USB × 2 · LAN · Audio
NetworkWi-Fi · Bluetooth · Ethernet (RJ45) · 4G (optional)
CMSWeb-based · Cloud · Private-label ready

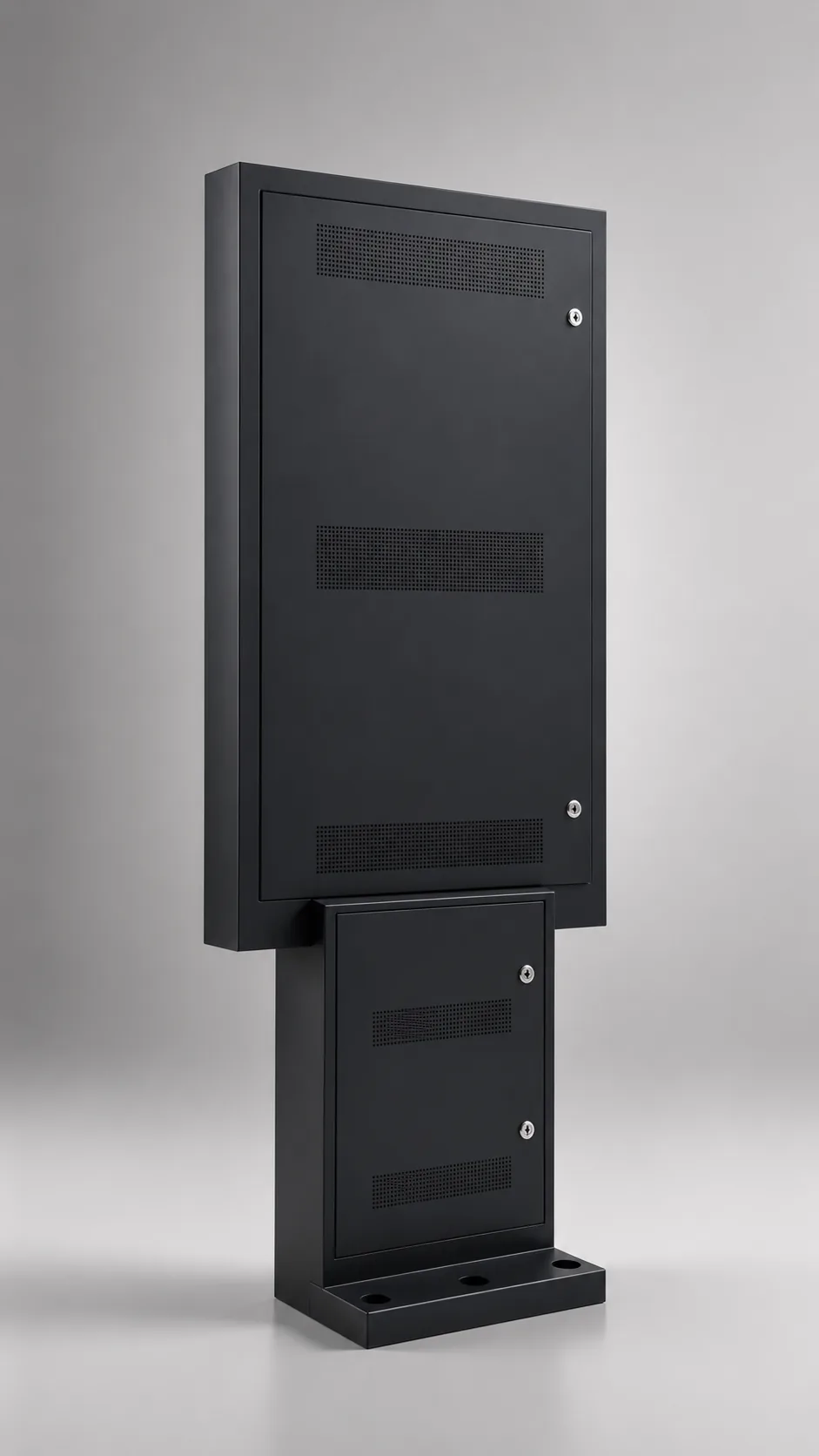

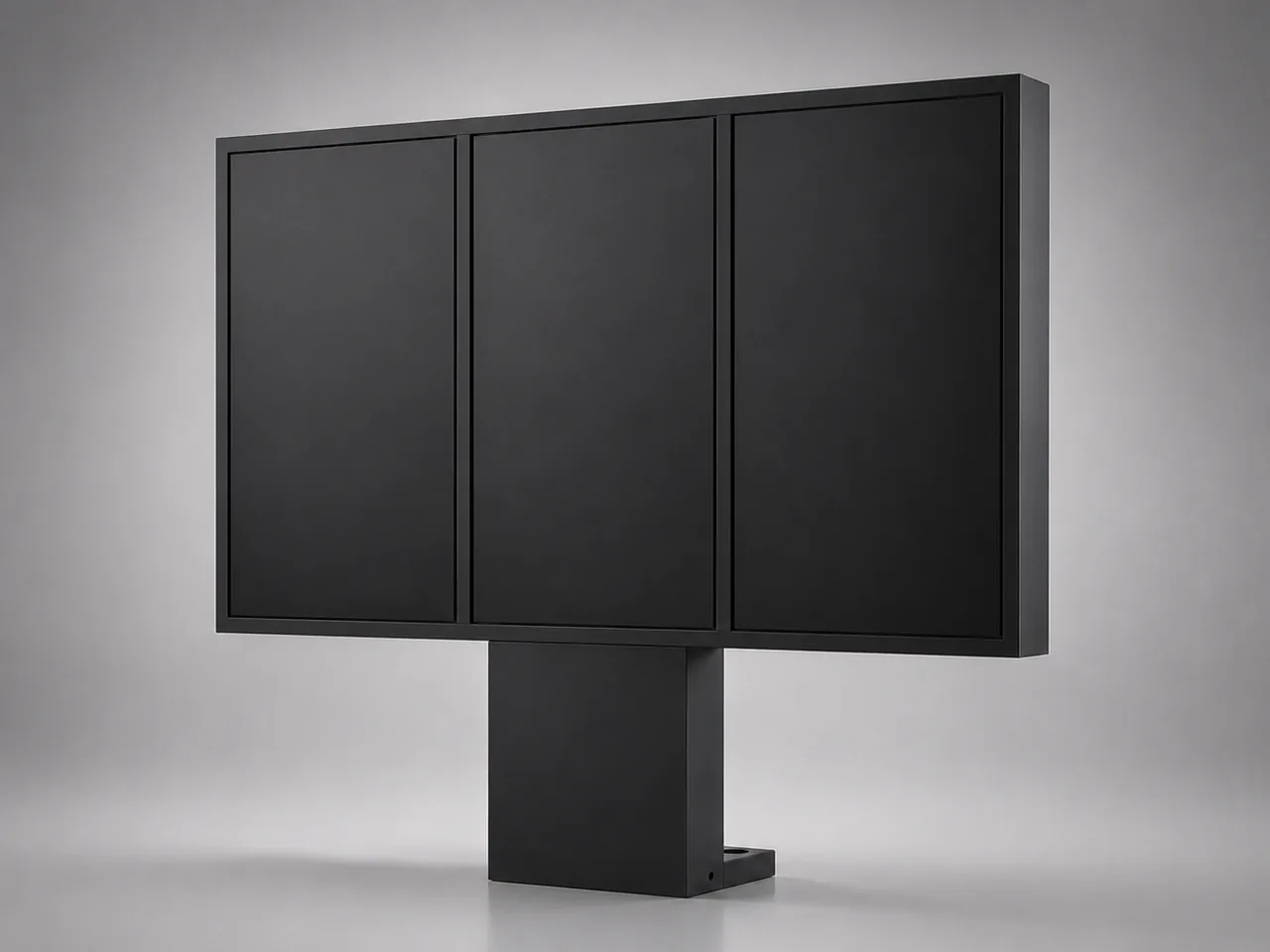

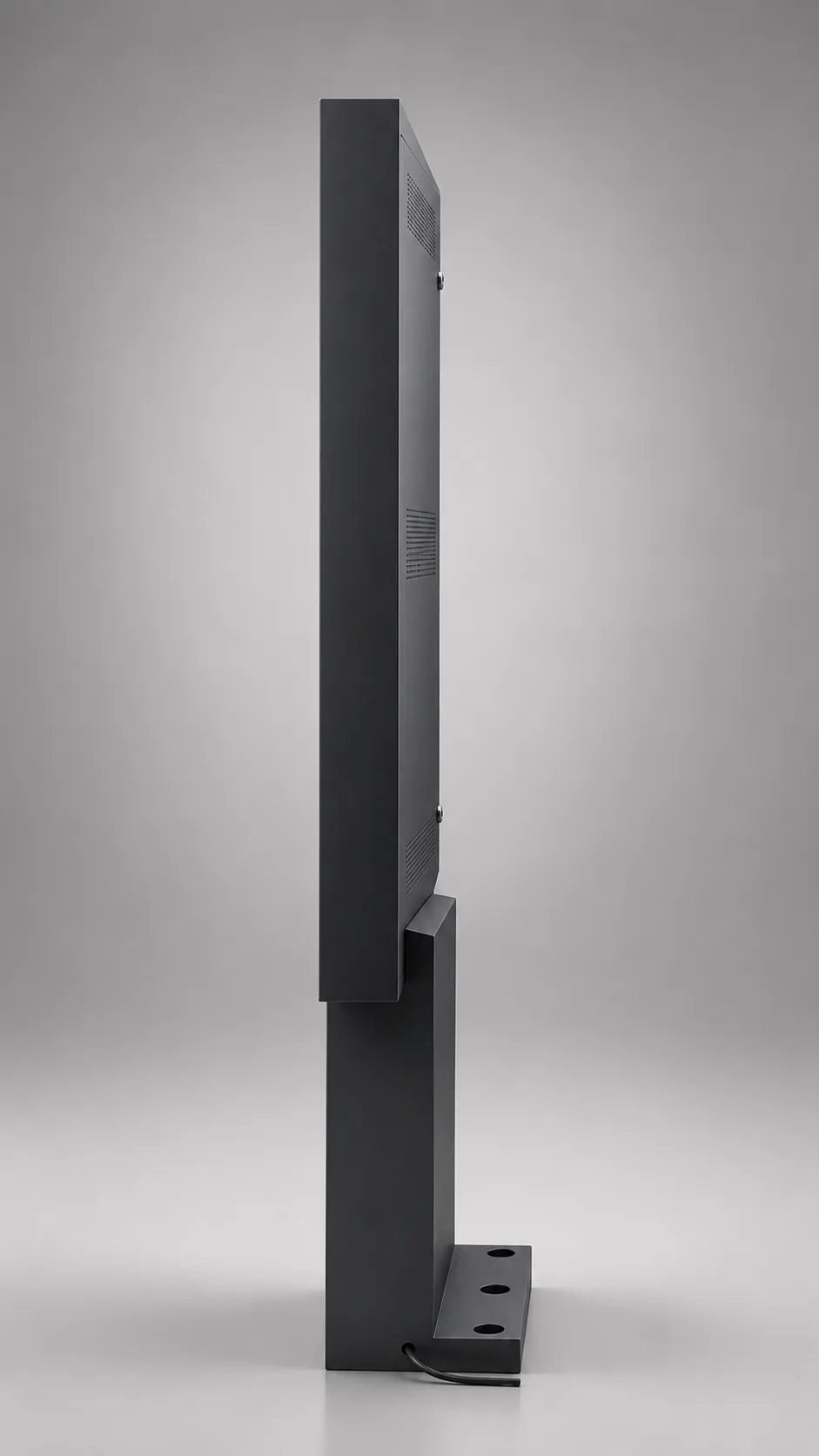

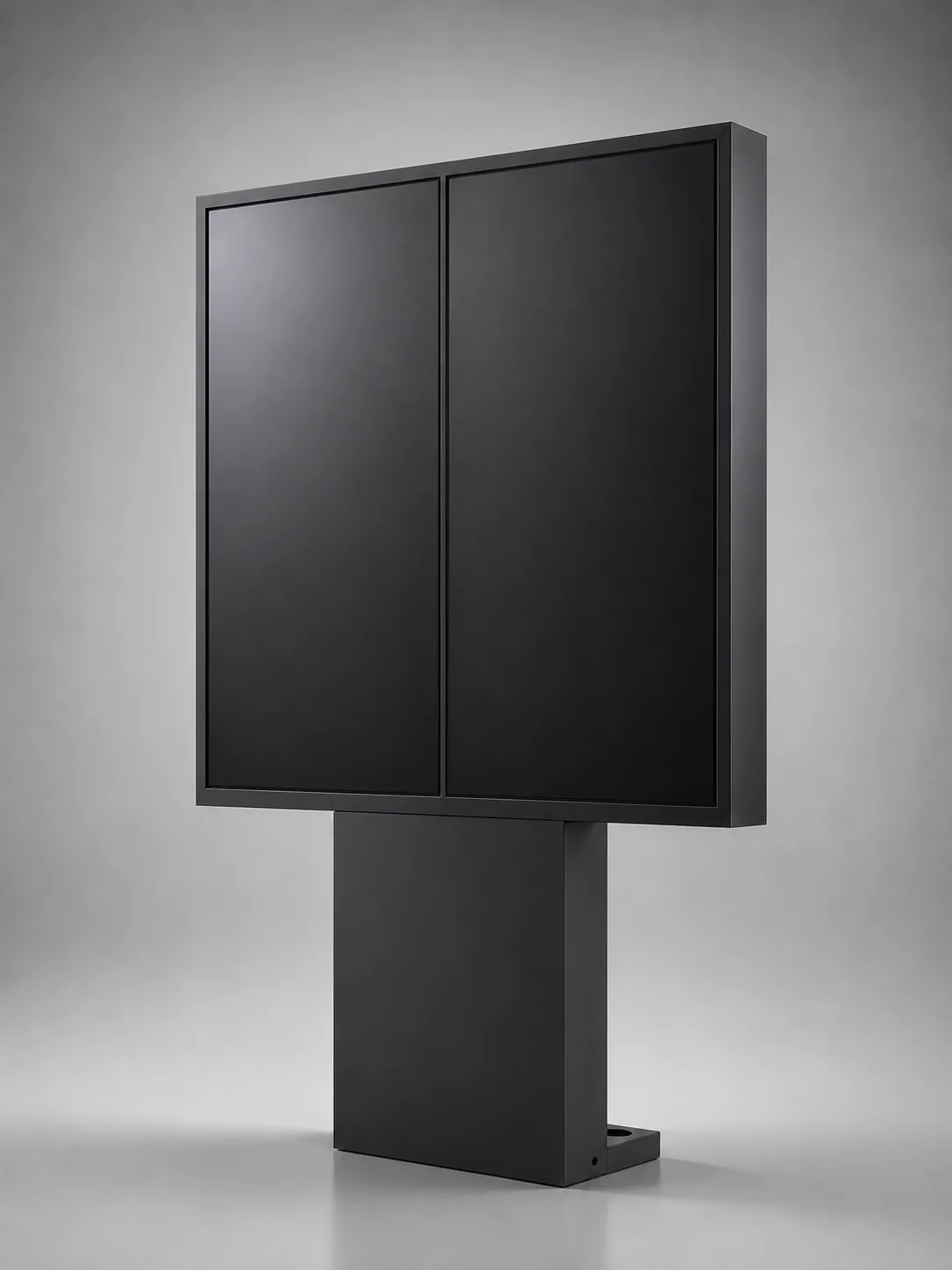

MountingWall · single post · dual post · triple post
Frequently asked questions
Quick reference on size, MOQ, lead time, customization and warranty. For project-specific questions, contact our sales team.
Is IP66 sufficient for direct rain exposure?
Yes. IP66 means the enclosure is dust-tight (6 = highest dust protection) and protected against powerful water jets (6 = water projected from any direction). This covers direct rain, snow, and high-pressure cleaning. It is NOT for submersion (which would be IP67 or IP68).
Can the display start up in freezing temperatures?
Yes. The integrated heating system pre-warms the LCD panel to operating temperature before activation. Cold-start is supported down to -20°C ambient. Typical warm-up time is 5–10 minutes from -20°C.
What is the FSOD320–860 model range?
FSOD320 is the 32-inch model, FSOD860 is the 86-inch model. The full range includes 32, 43, 49, 55, 65, 75, 86 inches. All share the same IP66 enclosure, smart thermal system, and CMS integration for channel-partner simplicity.
What is the typical lead time?
Standard SKUs ship within 15–25 business days after PO confirmation. Custom OEM projects typically run 30–45 business days from artwork approval to first article. Detailed lead time provided in the quotation.
What warranty and support is included?
3-year standard warranty on all commercial display products. Spare parts, RMA workflow, remote diagnostic support and on-site engineering for qualified project orders. Multi-language support in English, Chinese, Spanish, Portuguese, Arabic and Russian.
Tell us your project. We'll recommend the right display configuration.
Send product type, quantity, target country and branding needs. Our sales team replies within 12 business hours with model suggestions, OEM options, lead time and a factory quotation.
