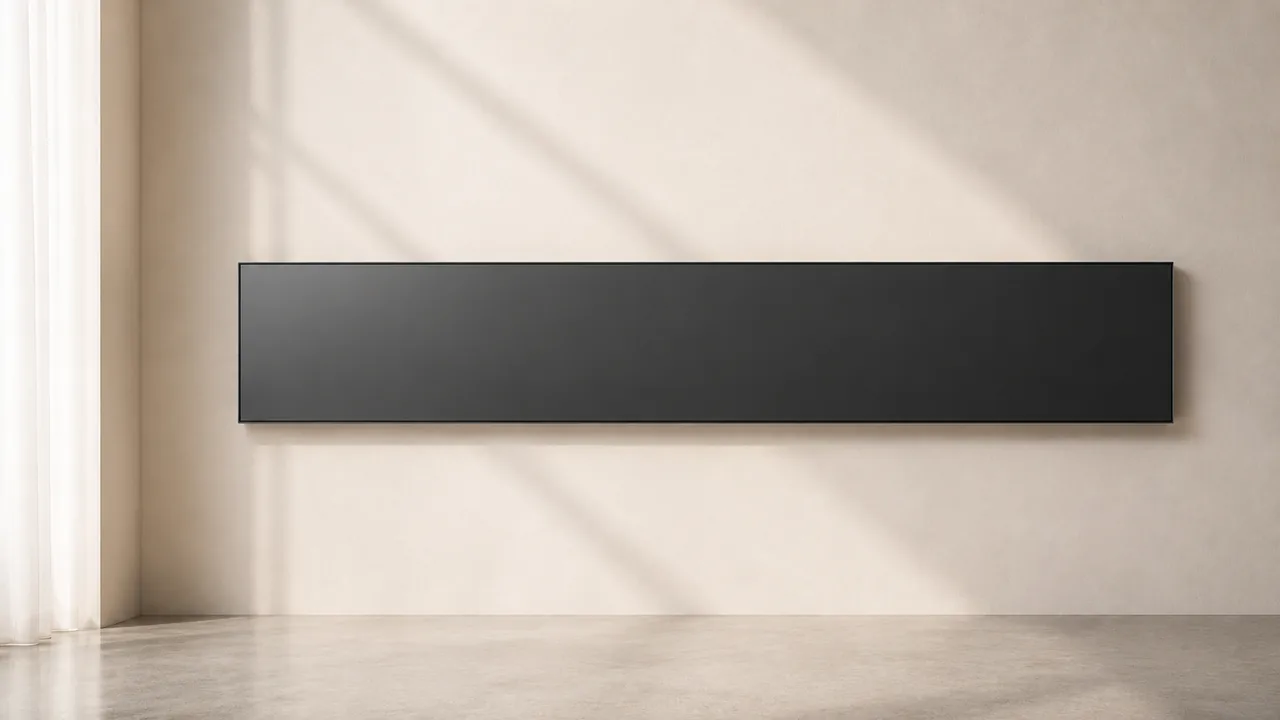

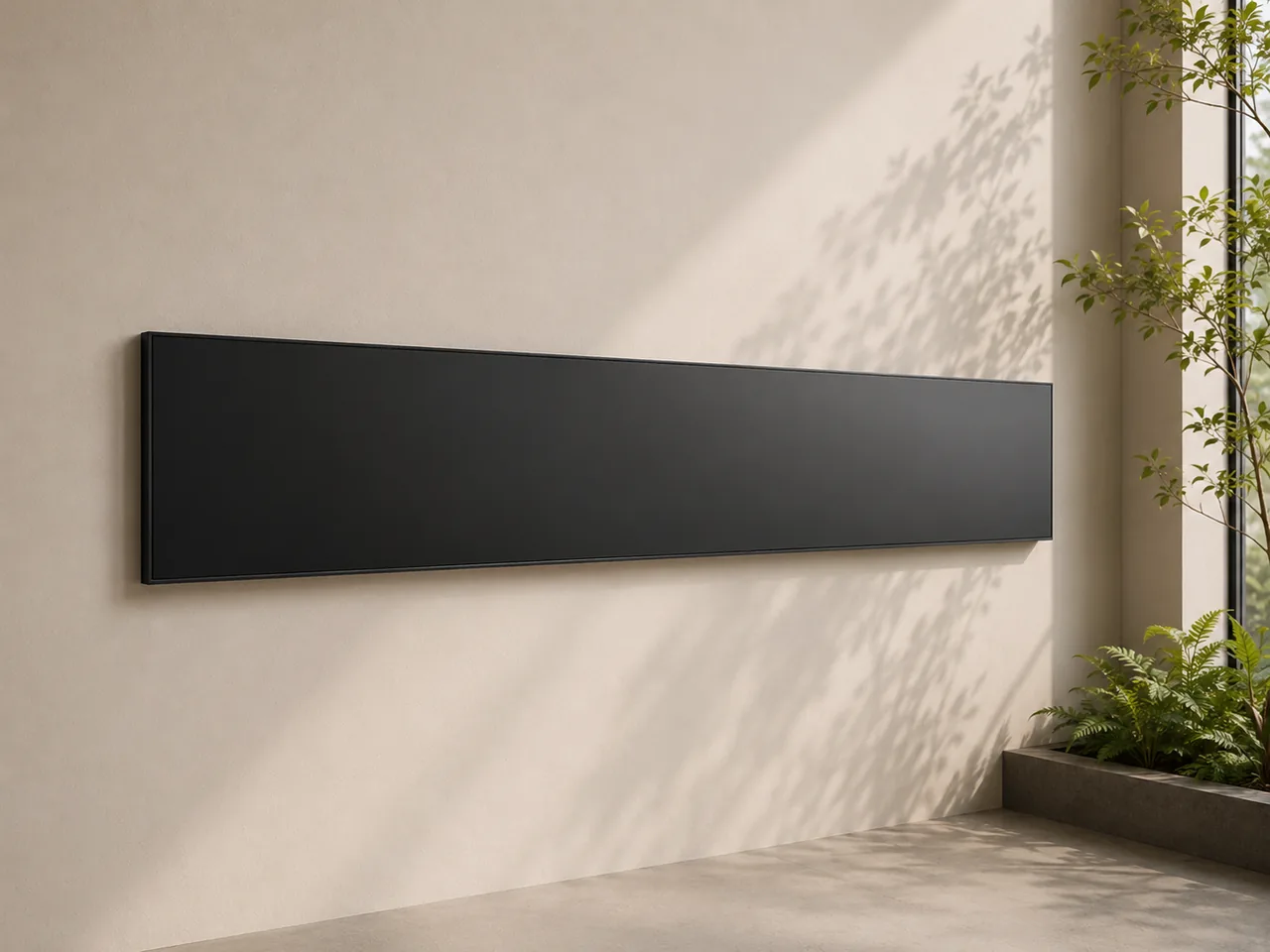

LCD Bar Display

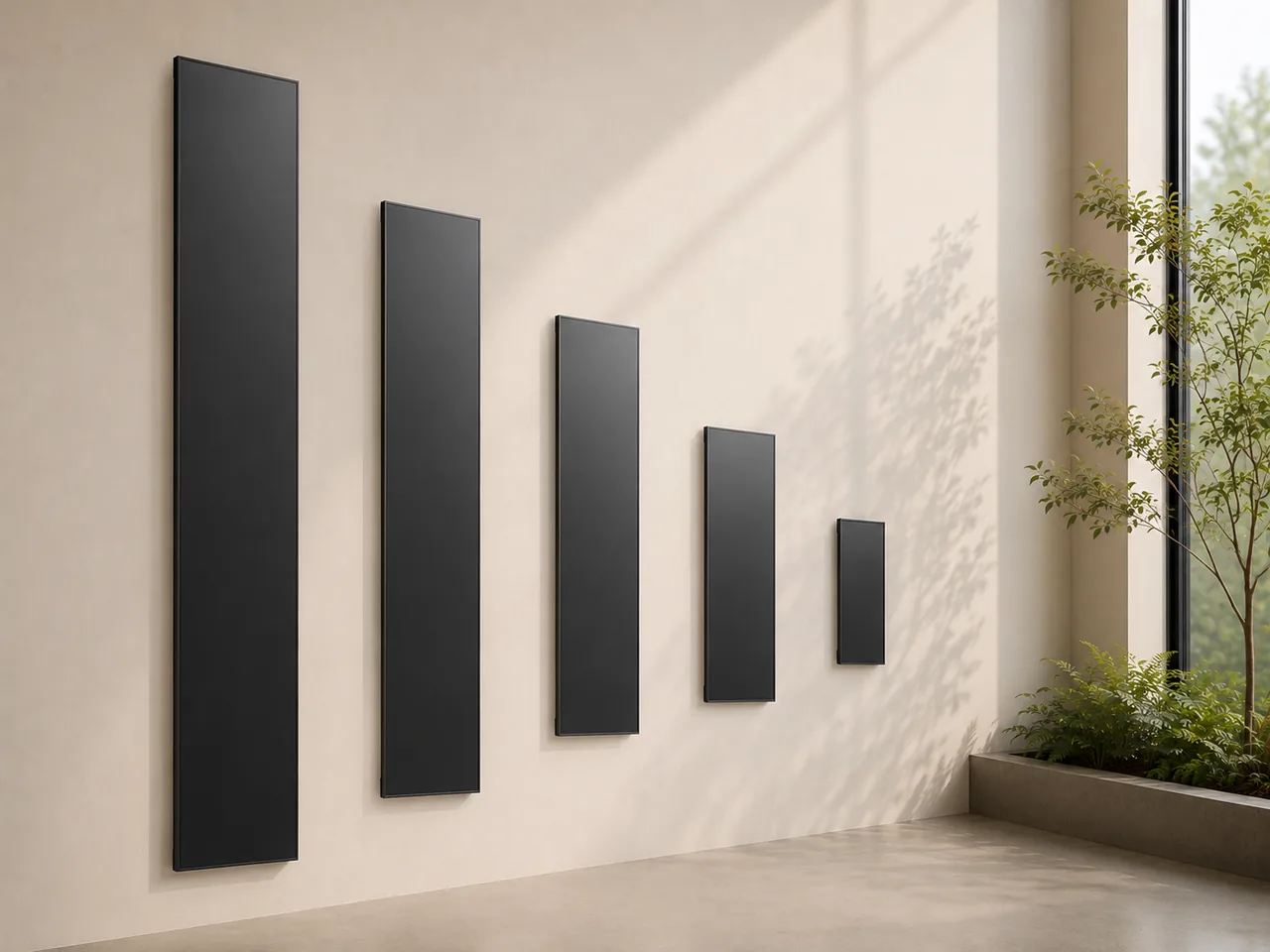

- Size23" / 29" / 35" / 37" / 43.8" / 46.6" / 47.6" / 49" / 58.5"
- LCD Bar DisplayUltra-Slim Visual Solution for Space-Critical Environments
- Aspect RatioExceptional
- PanelHigh-performance
- DesignVersatile, Ideal for narrow-space visualization
- Use CaseScenarios where standard 16:9 screens cannot effectively deliver targeted content
12 hrs Quotation SLA
3-year Warranty
50 units MOQ · OEM
Full specifications
Detailed parameters for channel deployment. Verified spec sheets available on request.
Display
Size range23"–58.5"
Aspect ratioCustom stretched ratios · 16:3 / 16:4 / 32:9
ResolutionCustom by aspect ratio
Brightness400–700 cd/m²
Color depth16.7M (8-bit) · 1.07G (10-bit)
Viewing angle178° H / 178° V
Touch optionPCAP multi-touch (optional)
MountingShelf-edge · hanging · wall
System & Connectivity
Daisy chainUp to 16 displays per chain · synchronized playback
NetworkWi-Fi · Bluetooth · Ethernet (RJ45) · 4G (optional)
Cloud CMSWeb-based · Cloud · Private-label ready
InputHDMI · USB × 2 · LAN
PowerDC 12V/24V · AC adapter included
Operating systemAndroid (default) · Windows (optional)
Operating temp0°C to 40°C · 10–80% RH
CertificationsCE · FCC · RoHS
Frequently asked questions
Quick reference on size, MOQ, lead time, customization and warranty. For project-specific questions, contact our sales team.
How many bar displays can I daisy chain?
Up to 16 displays per chain. Multiple chains can run from a single media player or CMS endpoint. For larger deployments, contact our team about multi-chain synchronization.
What aspect ratios are available?
We support custom stretched ratios including 16:3, 16:4, 32:9, and others. The most common shelf-edge ratio is 16:3 for pricing bands, 16:4 for promotional videos, and 32:9 for end-cap wide displays.
Can I integrate with Electronic Shelf Labels (ESL)?
Yes. Our bar LCD CMS can integrate with ESL systems from major vendors (SES, Pricer, Hanshow). One dashboard for both digital labels and dynamic content.
What is the typical lead time?
Standard SKUs ship within 15–25 business days after PO confirmation. Custom OEM projects typically run 30–45 business days from artwork approval to first article. Detailed lead time provided in the quotation.
What warranty and support is included?
3-year standard warranty on all commercial display products. Spare parts, RMA workflow, remote diagnostic support and on-site engineering for qualified project orders. Multi-language support in English, Chinese, Spanish, Portuguese, Arabic and Russian.
Tell us your project. We'll recommend the right display configuration.
Send product type, quantity, target country and branding needs. Our sales team replies within 12 business hours with model suggestions, OEM options, lead time and a factory quotation.
